Installing a shower valve rough-in is a key step in creating a functional and efficient shower system. This involves setting up the valve that controls water temperature and flow before finishing the wall, making it essential for any bathroom remodel or new construction.This guide covers every step, from determining the right height to connecting supply lines and testing for leaks. By following these instructions, you’ll create a solid foundation for a seamless tile and trim finish, ensuring long-term reliability.
Ready to begin? Let’s install your shower valve rough-in!
Table of Content
Tools and Materials Needed
Preparation is key to a smooth installation. Before you begin, gather the following tools and materials to avoid interruptions during the process.
Tools Needed:
- Soldering iron(for copper pipes)
- Screwdrivers(flathead and Phillips)
- Adjustable wrench
- Pipe cutter(for copper pipes)
- Crimping tool(for PEX pipes)
- Measuring tape
- Level
- Pencil or marker
Materials Needed:
- Shower valve(ensure it includes all components like bonnet, cover, and screen)
- Supply lines(copper or PEX, typically 1/2-inch diameter)
- Solder and flux(for copper pipes)
- Teflon tape
- Screws and nuts(for mounting)
- Blocking material(e.g., 2×4 wood)
- Backerboard(usually 1/2-inch thick)
- Tile or other finish material
Safety Tip: Always turn off the water supply before starting any plumbing work to prevent leaks or accidents.
Step-by-Step Installation Guide
Follow these detailed steps to install your shower valve rough-in with precision and confidence.
Step 1: Determine the Location and Height

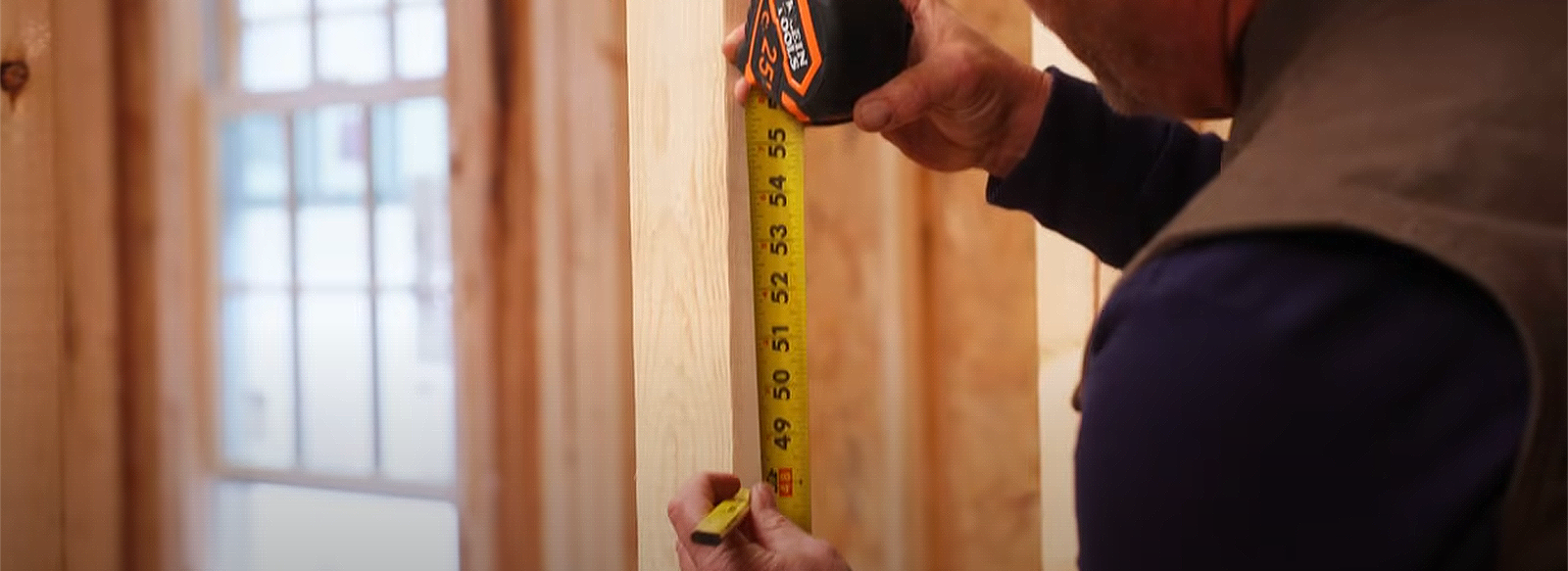

The first step to installing a shower valve rough-in is deciding its placement». The standard height ranges from 42 to 48 inches above the finished floor. Use 42 inches for shower-only setups and 48 inches for tub/shower combinations to accommodate both functions. Adjust this height based on the users’ needs—higher for taller individuals, lower for shorter ones.
Position the valve directly below the showerhead for optimal functionality. Use a pencil or marker to mark the spot, ensuring it’s level with a measuring tape and level tool.
(via.SharkBite Plumbing»)
Step 2: Prepare the Wall
You’ll need access to the wall’s interior to mount the valve. If the studs aren’t exposed, cut into the drywall carefully. Once the studs are visible, install blocking (typically a 2×4 piece of wood) between them. This provides a solid base for the valve. Secure the blocking firmly to the studs to handle the valve’s weight and any future movement.
Step 3: Mount the Valve
With the blocking ready, mount the shower valve according to the manufacturer’s instructions—specific models may vary. Secure it to the blocking with screws or nails, ensuring it’s level.
Pay close attention to the depth: Position the valve so the front face is set back from the finished wall surface (backerboard + tile) by the trim plate’s thickness (e.g., 0.5 inches). For example:
- Stud/blocking: 1.5 inches
- Backerboard: 0.5 inches
- Tile: 0.25 inches
- Total finish thickness: 2.25 inches
- Adjust valve depth (e.g., 2.75–3.5 inches per manufacturer specs) accordingly.
Step 4: Connect the Water Supply Lines
Now, connect the hot and cold water supply lines (typically 1/2-inch copper or PEX) to the valve. For copper pipes, use a soldering iron with solder and flux, keeping the temperature low to avoid damaging the valve—remove sensitive parts like cartridges beforehand if needed. For PEX, use a crimping tool for secure connections. Apply Teflon tape to all threaded joints to prevent leaks.
(via.SharkBite Plumbing»)
Step 5: Install Additional Components
For tub/shower combos», install a diverter valve to direct water to either the showerhead or tub spout. Position it about 12 inches below the main valve for the tub spout, then run a line up to the showerhead. Follow the manufacturer’s guidelines for proper installation.
Step 6: Test the Valve
Testing is critical before finishing the wall. Turn on the water supply and inspect all connections for leaks. Verify that the valve adjusts temperature and flow correctly. Use a pressure test cap if available, and flush the system for 5 minutes to remove debris. Fix any issues immediately to avoid future problems.
Step 7: Finish the Wall
Once the valve passes testing, install the backerboard, ensuring it’s secure and sealed. Then, apply your tile or finish material, cutting the valve opening precisely so the trim plate fits flush. After the wall is complete, attach the trim plate and handle per the manufacturer’s instructions to finalize the installation.
Common Mistakes and How to Avoid Them
Mistakes can happen, even with careful planning. Here’s how to sidestep the most common errors when installing a shower valve rough-in:
- Incorrect Depth Calculation: Misjudging the depth can leave the trim plate protruding or recessed. Measure your finish materials (e.g., 1/2-inch backerboard + 1/4-inch tile) and check the valve’s specs to set it correctly.
- Not Securing the Valve Properly: A loose valve can shift, causing leaks or damage. Use sturdy blocking and secure it firmly with screws or nails.
- Forgetting to Test for Leaks: Skipping this step risks hidden leaks. Always test before closing the wall—fix any issues immediately.
- Using the Wrong Materials: Ensure supply lines and connections match the valve’s requirements and local codes (e.g., copper vs. PEX).
Conclusion
Installing a shower valve rough-in doesn’t have to be intimidating. With careful planning, accurate measurements, and thorough testing, you’ll achieve a professional-grade installation that lasts. This guide has walked you through every step—from gathering tools to finishing the wall—so you can confidently set up your shower system.
